Pom Polyoxymethylene Cutting Machine Circular Saw

Pom Polyoxymethylene Cutting Machine Circular Saw

POM circular saw cutting machine

Polyoxymethylene acrylic machine

Circular saw for POM material

Nguồn gốc:

Quảng Đông, Trung Quốc

Hàng hiệu:

SAIDE

Số mô hình:

2600GX

Liên hệ chúng tôi
Yêu cầu Đặt giá
Thông tin chi tiết sản phẩm
tình trạng:
Mới
Kiểu:
cưa bảng
Sử dụng:
Chế biến gỗ
Phong cách:
Nằm ngang
Cách sử dụng:
Cắt gỗ acrylic nhựa ps pm plexi
Điện áp:
380V, 415V, 220V, tùy chỉnh
Kích thước (L*W*H):
5230x5085x1660mm
Warranty:
1 Year
Ứng dụng:
Công trình gỗ và nhà máy tùy chỉnh acrylic, đặc biệt là đối với acrylic, plexiglass, ps, pmma, cắt m
Trọng lượng (kg):
4500kg
Sức mạnh (kW):
13kw
Điểm bán hàng chính:
Dễ dàng vận hành
Các ngành công nghiệp áp dụng:
Khách sạn, cửa hàng vật liệu xây dựng, cửa hàng sửa chữa máy móc, nhà máy sản xuất, cửa hàng in, côn
Loại tiếp thị:
Sản Phẩm Hot 2019
Báo cáo kiểm tra máy móc:
Cung cấp
Video outgoing-inspection:
Provided
Bảo hành các thành phần cốt lõi:
1 năm
Các thành phần cốt lõi:
Plc
Chiều dài cắt tối đa:
2600mm
Tốc độ cho ăn:
0-60m/phút
Động cơ chính:
7,5kw
Áp suất không khí:
5-7kg/c㎡
Hệ thống điều khiển:
Nhật Bản Panasonic plc
After-sales Service Provided:
Online support
Sau khi bảo hành dịch vụ:
Video hỗ trợ kỹ thuật
Sau khi bảo hành:
Phụ tùng
Sau dịch vụ:
Dịch vụ bảo trì và sửa chữa hiện trường
Cổng:
Thâm Quyến, Quảng Châu, Shekou, Huangpu, v.v.
Làm nổi bật:

POM circular saw cutting machine

,

Polyoxymethylene acrylic machine

,

Circular saw for POM material

Điều khoản thanh toán & vận chuyển
Số lượng đặt hàng tối thiểu
1SET
Giá bán
$1,000.00/sets >=1 sets
Packaging Details
1. Protect foam films inside,
2. Firm protect iron frame
2. Standard export plywood suitable for sea shipping for optional
Khả năng cung cấp
100 bộ/bộ mỗi tháng
Mô tả Sản phẩm

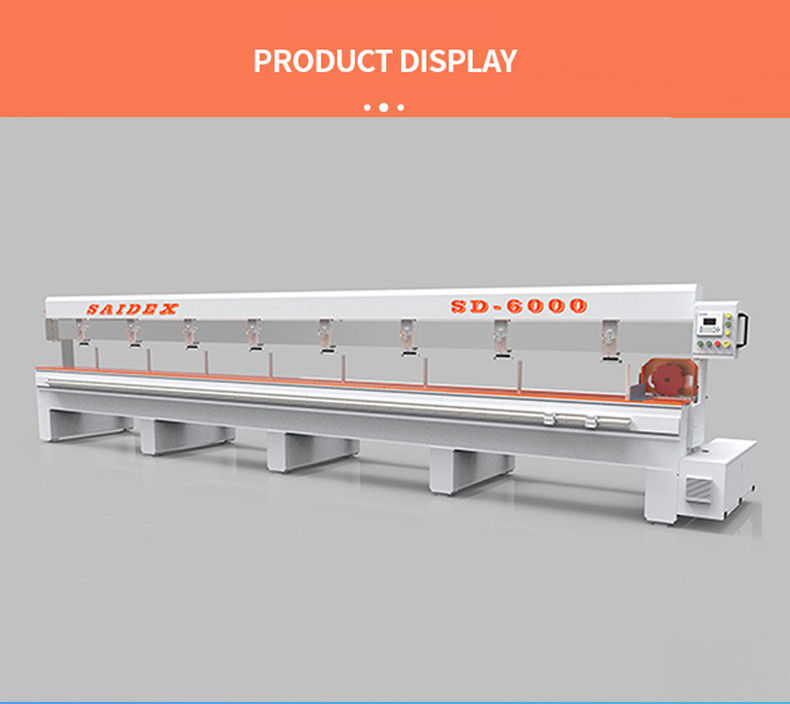

Pom Polyoxymethylene Cutting Machine Circular Saw



Pom Polyoxymethylene Cutting Machine  Circular Saw 0



SAMPLES FREE!   SAMPLES FREE!   SAMPLES FREE!



Efficient and fast processing ability is commiteed to improving the product production rate.



Products Features:



1. Reliable Japanese Panasonic servo motor and control device.



2. High quality panasonic controller PLC.



3. Acrylic special purpose clamp, convenient for samll materails.



4. Electronic ruler from German, precision compensation, resolution 0.01mm.



5. Easy transport the materials, steel ball type air floating table, avoid the surface scratches.



6. Simplified, easy to learn control systems are dedicated to PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC



7. The guide rail of saw seat adopts imported brand, the sawing straighness < 0.06mm, with high precision and heavy load, panasonic servo control is specially used for PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .



Pom Polyoxymethylene Cutting Machine  Circular Saw 1



 Products Name SD-2600 Acrylic electronic cutting saw
Dimensions(L*W*H) 5230mm*5085mm*1660mm
Sawing length 2600mm
Sawing thickness 70mm
Dia. of main saw blade φ355mm
Axis dia. of main saw blade φ30mm
Rotate speed of main saw blade 2000-5000rpm(Frequency control of motor speed)
Saw carriage forward speed 0-60m/min
Saw carriage back speed 0-60m/min
Head saw motor 7.5KW
Saw base drive motor 1000W(Panasonic servo)
Automatic feeding motor 1000W(Panasonic servo)
High pressure blower motor 2.2KW
Total Power 13KW
Automatic feeding  speed 0-60m/min
Operation pressure 5-7kg/cm²
Workbench height 950mm
Machine net weight 4500KG





Pom Polyoxymethylene Cutting Machine  Circular Saw 2



Pom Polyoxymethylene Cutting Machine  Circular Saw 3



Pom Polyoxymethylene Cutting Machine  Circular Saw 4





1HD Touch screen control system

  1) Easy operation, safety & reliable.

  2) Which has complete operating hints and troubleshooting guide functions.

  3) It’s cutting plan can edit manually; can simulate or execute cutting plans.

  4) Can compatible with bar code manage software or factory automation software.

  5) Machine can receive high precesion about 0.01mm.



2. Japan Panasonic PLC control system.



3. Add side aligning system:

Fix cutting panel width side, control panels won’t move or shake when sawing,

ensure sawing precision. Pressure can be adjusted according to difference thickness,

weight and material, ensure the precision of sawing dimension.



4. Saw carrier

1) Driven by imported high-precision rack & pinion, stable movement, ensure cutting precision

2). Saw carrier pull back position automatically controlled base on next cutting length,

Which reduce unused moving time and greatly improve efficiency.

3). Max cutting speed reach to 60m/min.



5. Loading system: Air floating loading table,avoiding board scratching and assuring

smoother board movement, suit for heavy and big type PMMA, MS, PS, PLEXIGLASS, ACRYLIC, PLASTIC .



6. Position system:

Imported CNC automatic positioning ruler & slid raileffectively avoid the artificial

operation error, and greatly increase cutting accuracy. Machine can receive high precesion about 0.01mm.



7. Automatic feed system

  1) Adopt 7pcs pneumatic holding gripers, can gripe the panel steadilyhighly reduce

labor intensity, and greatly improve production efficiency, Min holding panel size 45mm.

  2) Drive by Japan Panasonic Servomotor & German Electronic ruler





Pom Polyoxymethylene Cutting Machine  Circular Saw 5



Pom Polyoxymethylene Cutting Machine  Circular Saw 6



Pom Polyoxymethylene Cutting Machine  Circular Saw 7



Pom Polyoxymethylene Cutting Machine  Circular Saw 8



Pom Polyoxymethylene Cutting Machine  Circular Saw 9





 Pom Polyoxymethylene Cutting Machine  Circular Saw 10

Pom Polyoxymethylene Cutting Machine  Circular Saw 11



Pom Polyoxymethylene Cutting Machine  Circular Saw 12



1. After-sell service:


    Engineers available to service machines in overseas.
    You can also have training in our factory for free.
    24 hours online service every day, free technical support for whole machine life.

2. Technical support:


    Machine has been adjusted and all parts will be tested before shipping by our QC staffs.
    We will provide the consumable parts whole machine life when you need replacement.

3. Warranty:


  Wholemachine with one year guaranty for the machine main parts (excluding the consumables), life time maintenance free of charge.



Pom Polyoxymethylene Cutting Machine  Circular Saw 13





DONGGUAN SAIDE ELECTROMECHANICAL EQUIPMENT CO.,LTD


Address: Guangdong province,Dongguan city shilong town the frist industrial zone,China


Mobile:  +86  13392020165  Mike    ( whatsapp, wechat available)



Tips:



The price is EXW price,and the product price and attributes are for reference only, not as the final transaction price,transaction price should be based on your customized demand to determine the detailed offer, please contact customer service.
